SPLb - Pressure controller

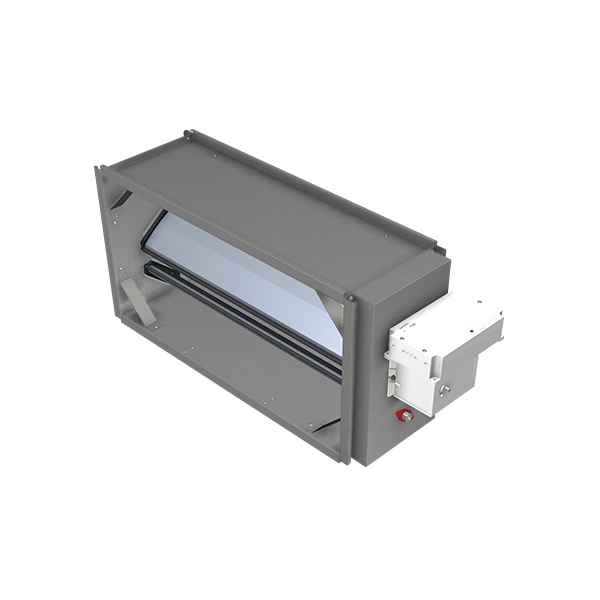

Pressure controller SPLb ensures that the desired pressure is maintained in a ventilation duct. The controller is included in Lindinvent’s smart damper and measuring unit for pressure control DCV-SPb.

Characteristics

• Can compensate for pressure changes and hereby maintain static pressure in ventilation ducts.
• Can be pressure-optimised via Lindinvents central unit to obtain the lowest energy consumption and noise levels.
• Protects following units from varying pressure, which increases service life and avoids self-oscillation.
• The controller enables the sectioning of systems with different pressure requirements to ensure airflow and noise levels.
• The integrated pressure sensor is connected via a hose to a pressure nipple for measurement.
• The controller is programmable and its parameters can be read or set locally via handset or centrally over a network.
• Connects via Node-ID to a local communication network (CAN-loop) for stable communication between cooperating units.
• Equipped with Bluetooth® for communication via mobile application LINDINSIDE.

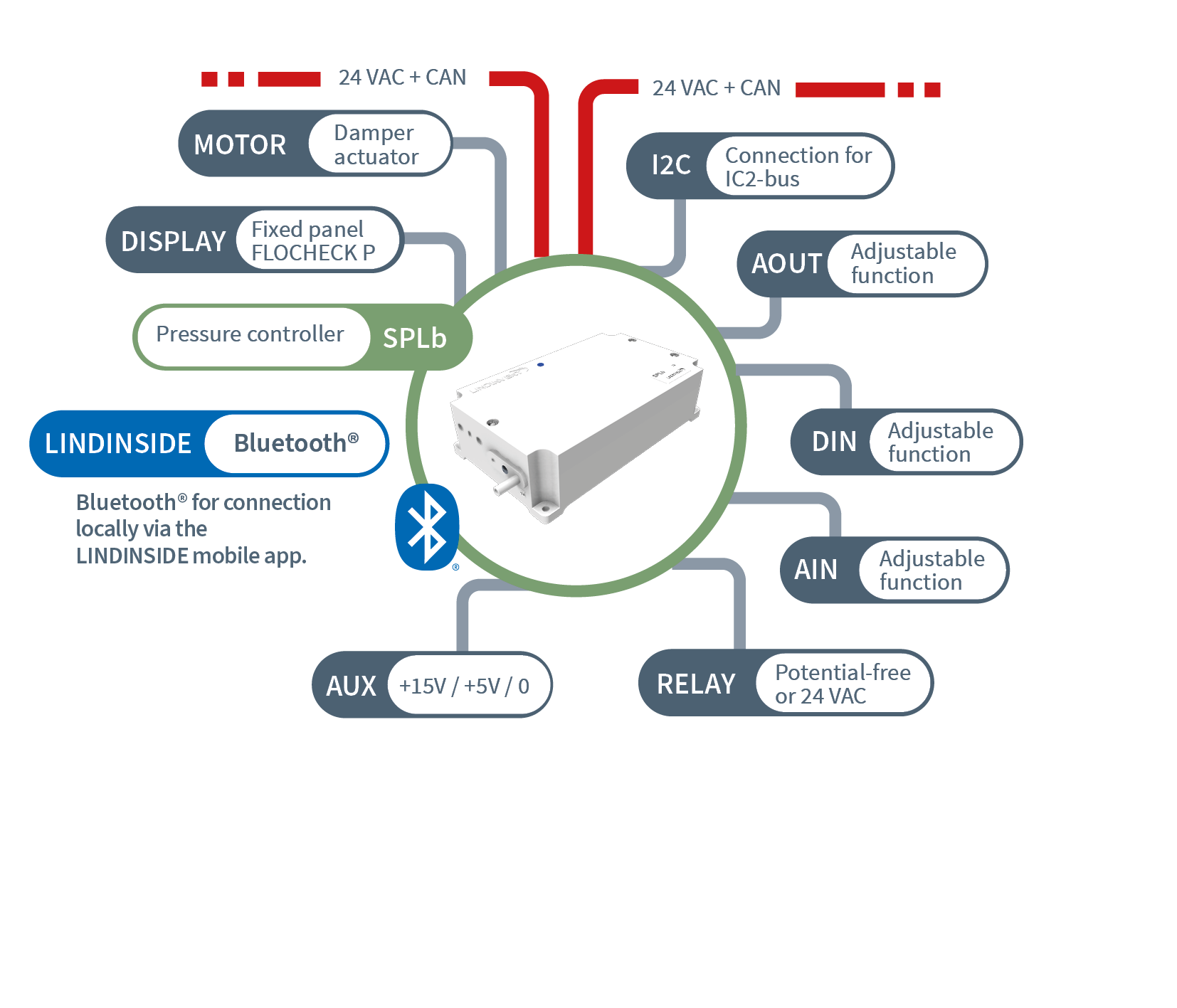

User interface

• Login localy directly to the controller via a smart phone with the LINDINSIDE app.
• TCP/IP networking over Gateway NCE and Lindinvents central unit and system software LINDINSPECT.
• Other external parent system via Gateway NCE and ModbusRTU or ModbusTCP.
• Fixed user panel FLOCHECK P, which can be wired directly to the controller.
